How a Compass Is Made: Full Step-by-Step Guide

Have you ever wondered how a compass is actually made and what allows its needle to reliably point north? Behind this simple-looking tool there is a precise combination of materials, magnetism, and careful engineering that make accurate navigation possible.

In this guide, you’ll learn exactly how a traditional magnetic compass is made, step by step — from shaping and magnetizing the needle, to building the housing, filling it with liquid, sealing it, and finally calibrating it for accuracy. Along the way, we’ll answer common questions like how are compasses made, what are compasses made of, and what is the needle of a compass made of, so you can fully understand why each part is designed the way it is and how all the components work together.

By the end, you won’t just know what a compass does — you’ll know how it’s built, what materials are used, and why each stage of the manufacturing process is essential for reliable navigation.

Understanding How a Compass Works

At its core, a compass operates based on the principles of magnetism, which you can read more about in our article on how a magnetic compass works. The Earth itself acts like a giant magnet, with a magnetic field that extends far beyond its surface. The compass needle, which is often made of iron or a similar ferromagnetic material, aligns itself with the Earth's magnetic field. This is why a compass needle always points toward magnetic north, allowing users to determine their direction.

A standard compass consists of several key components, including the compass needle, the compass housing, and the dial. The needle is typically balanced on a pivot point so that it can rotate freely. The compass housing is often filled with a liquid to dampen the movement of the needle, reducing the likelihood of erratic swings. This is essential for ensuring that the needle settles quickly and accurately on the north-south axis.

The magnetic compass bowls are filled with a liquid to provide stability and enhance the usability of the compass. This liquid, commonly a type of oil or alcohol, allows the needle to move smoothly while minimizing the effects of external vibrations or movements. The combination of a well-designed needle and a stable housing allows for precise navigation, which is crucial for anyone relying on a compass in the field.

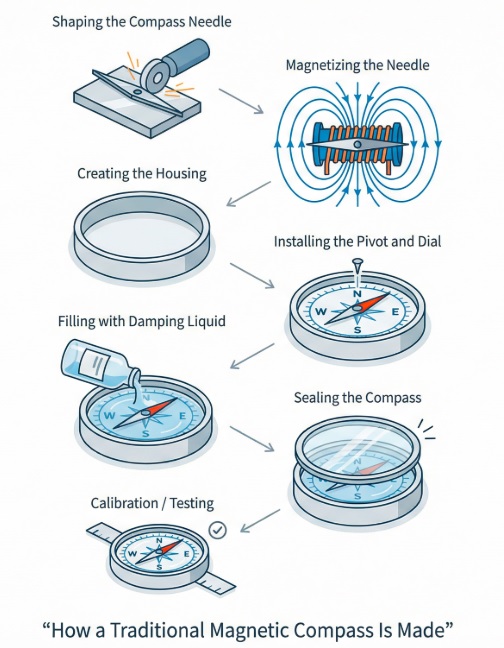

How Is a Compass Made? Step-by-Step Process

Understanding how a compass is made reveals the intricate combination of physics, engineering, and craftsmanship that allows this navigational tool to function with precision. While modern manufacturing techniques may vary slightly depending on the type of compass being produced (e.g., magnetic, lensatic, digital), the general steps remain rooted in a few essential principles. Below is a step-by-step breakdown of how a traditional magnetic compass is made.

1. Shaping the Compass Needle

The process begins with creating the needle, the heart of the compass. Traditionally, the needle is made from iron or a ferromagnetic alloy such as stainless steel or alnico (an alloy of aluminum, nickel, and cobalt).

• Material Selection: The needle must be both lightweight and magnetically responsive.
• Forming the Needle: It is cut, stamped, or forged into a thin, elongated shape.
• Balancing: The needle is carefully balanced to ensure smooth, horizontal rotation when suspended or mounted on a pivot.

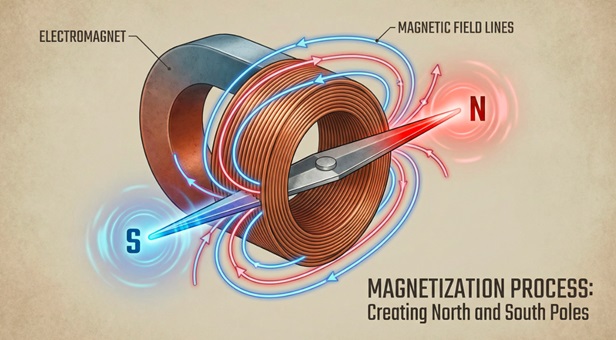

2. Magnetizing the Needle

After shaping, The needle is magnetized so it can align with the Earth's magnetic field, similar to how a magnetometer works in detecting magnetic fields..

• Electromagnetic Magnetization: The needle is passed through a strong electromagnetic field.
• Permanent Magnetization: Alternatively, it can be placed near a powerful magnet to induce permanent polarity.

This step is crucial—only a magnetized needle will consistently point toward magnetic north.

3. Creating the Compass Housing

The housing is the protective shell that contains the needle and allows for easy reading of direction.

• Materials Used: Common materials include plastic, aluminum, brass, or even glass for high-precision compasses.
• Molding or Machining: The material is shaped using injection molding (plastic) or CNC machining (metal).

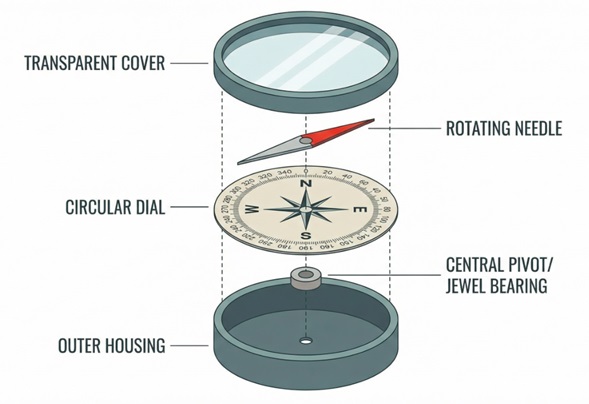

4. Installing the Pivot and Dial

• Pivot Installation: A small pivot point, usually made of jewel-bearing (e.g., sapphire or hardened steel), is installed at the center. This allows the needle to spin freely with minimal friction.
• Attaching the Dial: The dial or card is fixed inside the housing and marked with cardinal directions (N, S, E, W) and degree indicators (0° to 360°).

Some dials are floating; others are fixed, depending on the design.

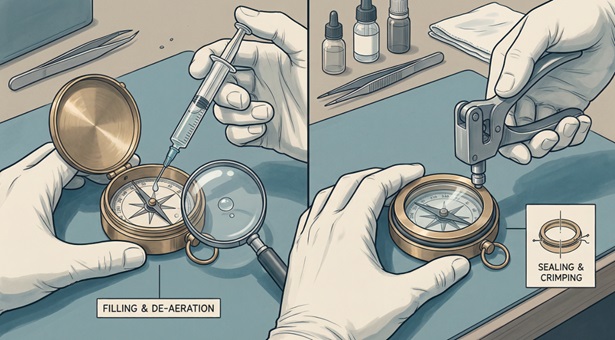

5. Liquid Filling for Stability

Most compasses are filled with a damping liquid such as mineral oil, alcohol, or silicone fluid.

• Purpose: The liquid reduces needle oscillation, stabilizes movement, and improves readability.
• Filling Process: The liquid is carefully injected into the housing, ensuring no air bubbles remain, as these can affect needle performance.

6. Sealing the Compass

After filling, the compass is sealed tightly to prevent leakage or contamination. This is usually done with:

• Rubber gaskets or O-rings
• Ultrasonic welding (for plastic housings)
• Metal crimping (for brass or aluminum casings)

This step ensures the compass is waterproof, dustproof, and durable under various environmental conditions.

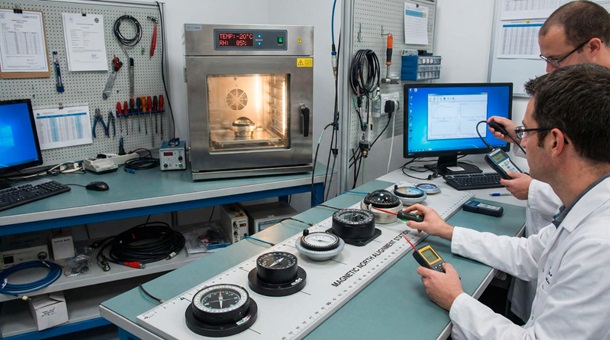

7. Calibration and Testing

Before being packaged for distribution, each compass undergoes testing and calibration:

• Magnetic Accuracy: Ensuring the needle points to magnetic north.
• Stability Test: Verifying that the needle settles quickly and does not stick or lag.
• Durability Check: Assessing resistance to vibration, temperature changes, and moisture.

Some high-end models are even tested in environmental chambers to simulate real-world conditions.

Final Thoughts

Knowing how a compass is made offers a deep appreciation for a tool that, despite its simplicity, embodies centuries of scientific advancement and craftsmanship. Each component, from the precisely magnetized needle to the damping liquid and calibrated dial, plays a vital role in ensuring accurate navigation. Whether used in outdoor exploration, military operations, or symbolic representations of direction and purpose, the compass remains an enduring technological achievement.

Brief History: How Was the First Compass Made?

The very first compasses were developed in ancient China, a deeper look at the history of the magnetic compass is available here, where lodestones – naturally magnetized pieces of iron ore – were used as early directional tools. When people ask how was the first compass made, the answer is quite simple compared to modern designs: a magnetized needle or lodestone was floated on water or suspended so it could align with Earth’s magnetic field.

Over time, the material used to make ancient compass instruments evolved. The material used to make ancient compass devices often included carved wood or bronze for the base, with a lodestone or magnetized metal needle for the pointer, long before modern plastics and precision bearings existed.

Many people also wonder when was the magnetic compass made a standard tool for navigation. Historians generally place its widespread use in maritime travel around the medieval period, when improved metalworking and more reliable needles allowed sailors to trust the readings over long distances.

What Are Compasses Made Of?

The materials used to make a compass play a significant role in its functionality and durability. If you're curious about the different types of compasses, check out our article on compass types. The compass needle is traditionally made of iron, but modern compasses may use other materials, including stainless steel or alloys that enhance magnetic properties. The choice of material for the needle is crucial because it needs to be lightweight yet strong enough to respond to magnetic fields.

The compass housing is typically crafted from durable materials such as plastic, aluminum, or brass. These materials provide protection for the internal components while also being lightweight and easy to handle. Some high-end compasses may even feature glass or sapphire crystals to protect the dial while maintaining clarity.

In addition to the primary components, many compasses also include features like luminescent markings for low-light conditions, sighting mirrors for precise navigation, and clinometers for measuring slope angles. Understanding what is a compass made of is essential for appreciating the craftsmanship and engineering that goes into creating these navigational aids.

The Symbolism of the Compass

Beyond its practical applications, the compass is laden with rich symbolism across various cultures. It often represents guidance, direction, and the pursuit of one’s life path. In literature and art, the compass is frequently depicted as a tool for finding one's way not just physically but also metaphorically, symbolizing the journey of self-discovery and personal growth.

In many Indigenous cultures, the compass embodies the connection between nature and humanity. For more fascinating insights about the compass, check out our article on interesting facts about the compass. It serves as a reminder of the natural world and the importance of respecting the land and its resources. The compass is sometimes used in rituals and ceremonies to signify the guidance of ancestors and the importance of staying true to one's path.

In modern contexts, the compass has been adopted as a symbol in various professions and movements. For example, it is often associated with navigation and exploration, representing the spirit of adventure. In the realm of personal development, the compass is a metaphor for finding one’s purpose and direction in life, urging individuals to consider their values and aspirations as they navigate through challenges.
